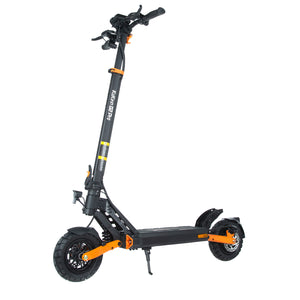

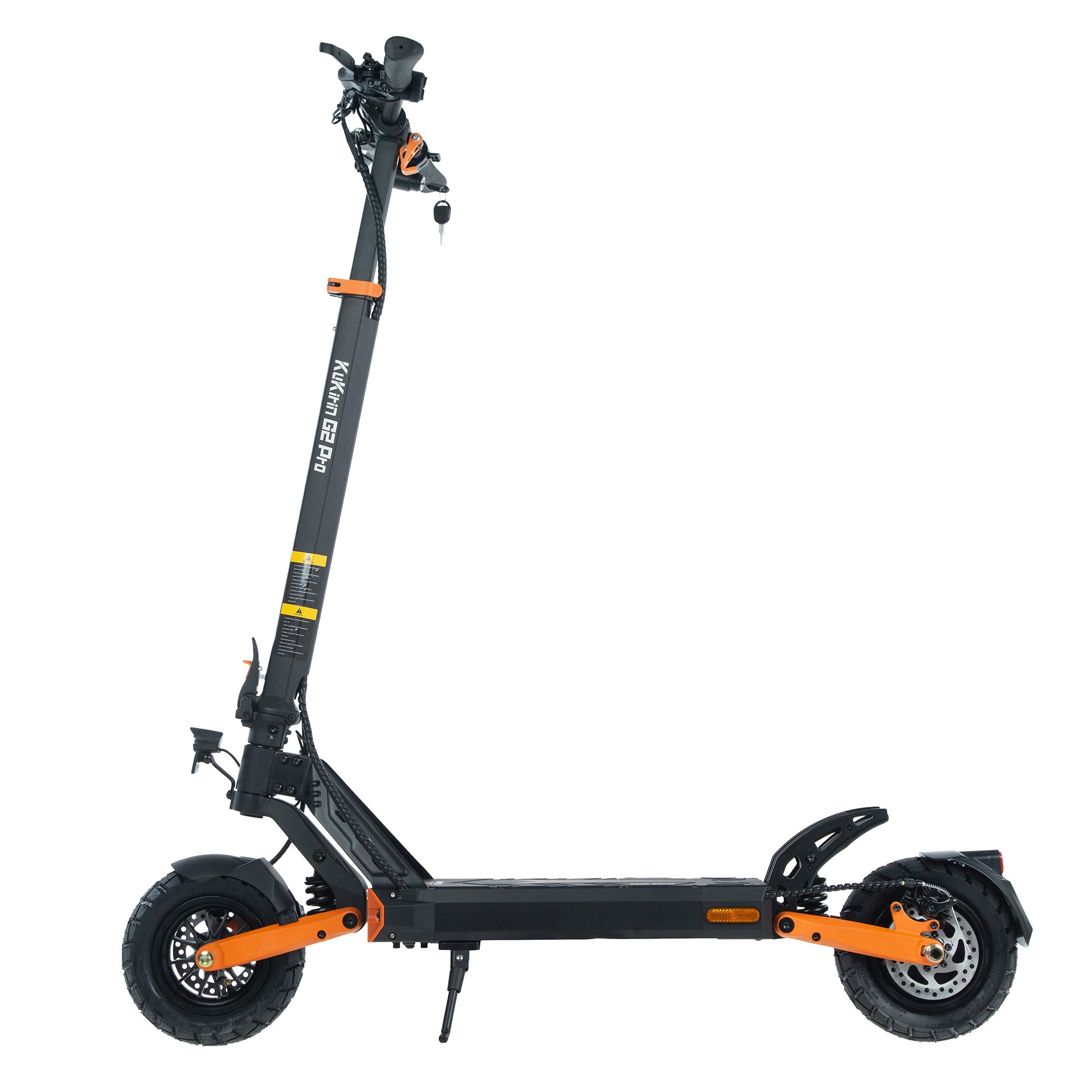

Kukirin G2 Pro DGT
Kukirin G2 Pro DGT
Kukirin G2 Pro DGT
48V 15.6Ah Battery
500W Brushless Motor
65 Kilometers Range
9'' Tubeless Wheels

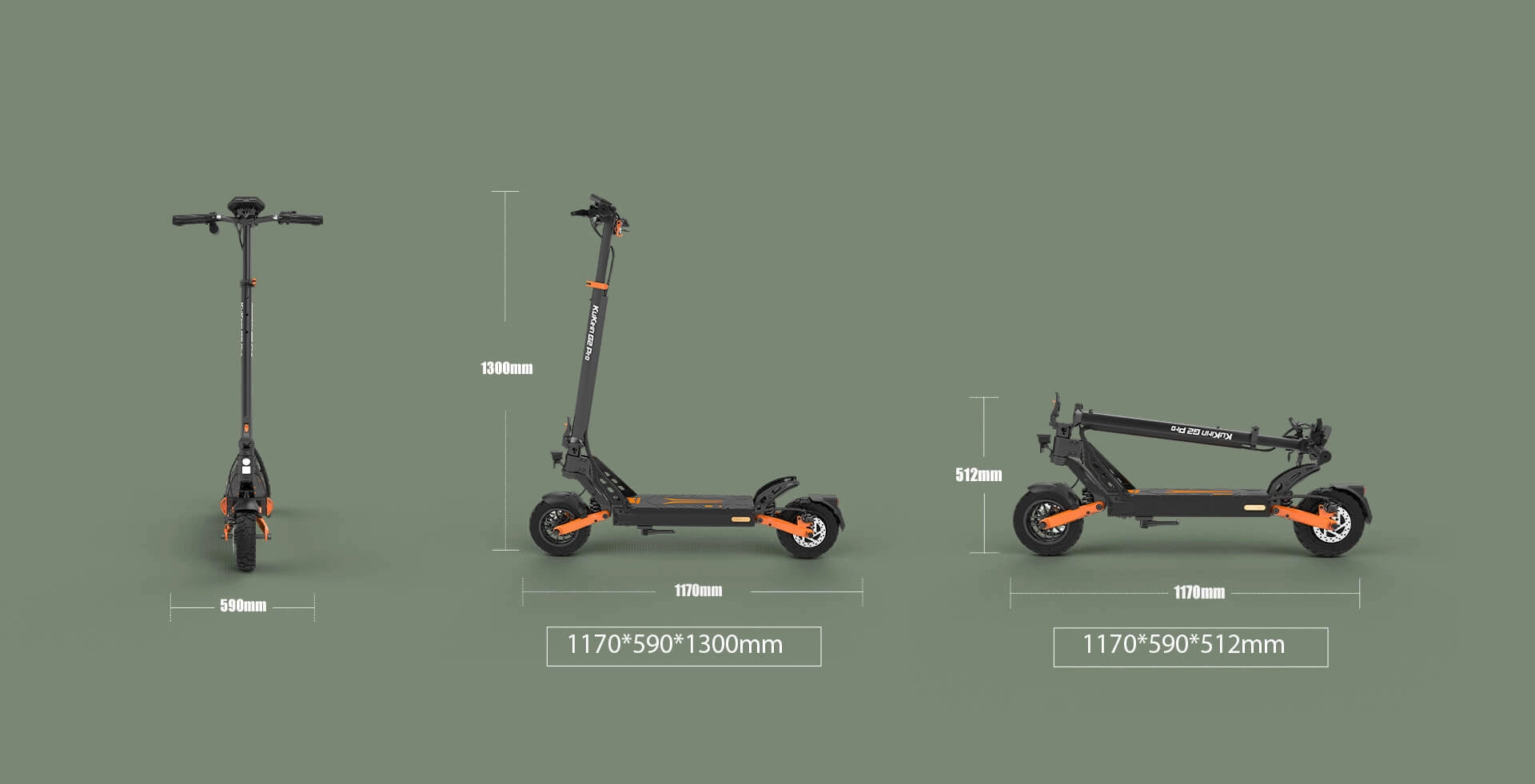

| Unfolded Size | 1170*590*1300mm |

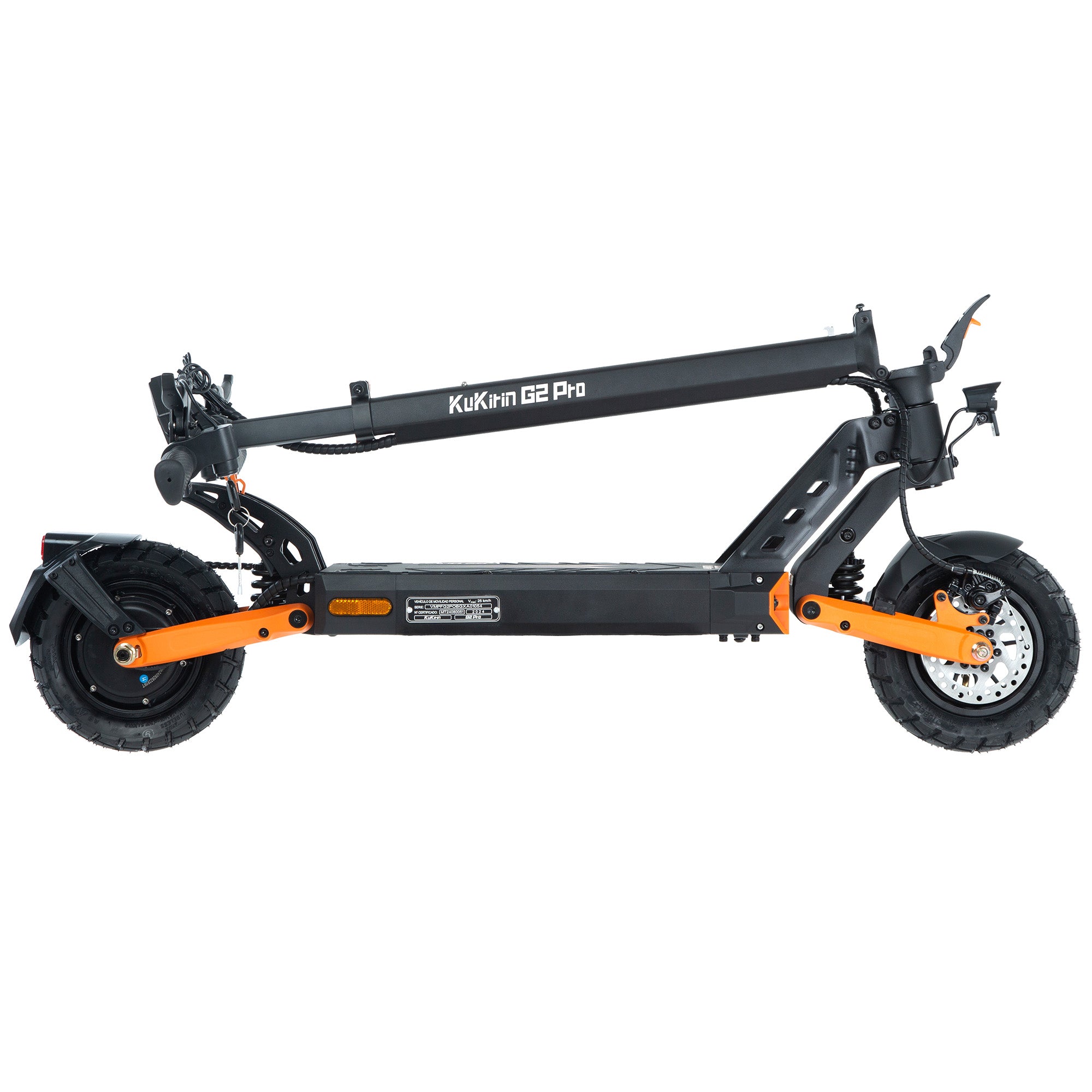

| Folded Size | 1170*590*512mm |
| Weight | 22.3kg |
| Handlebar Length | 595mm |

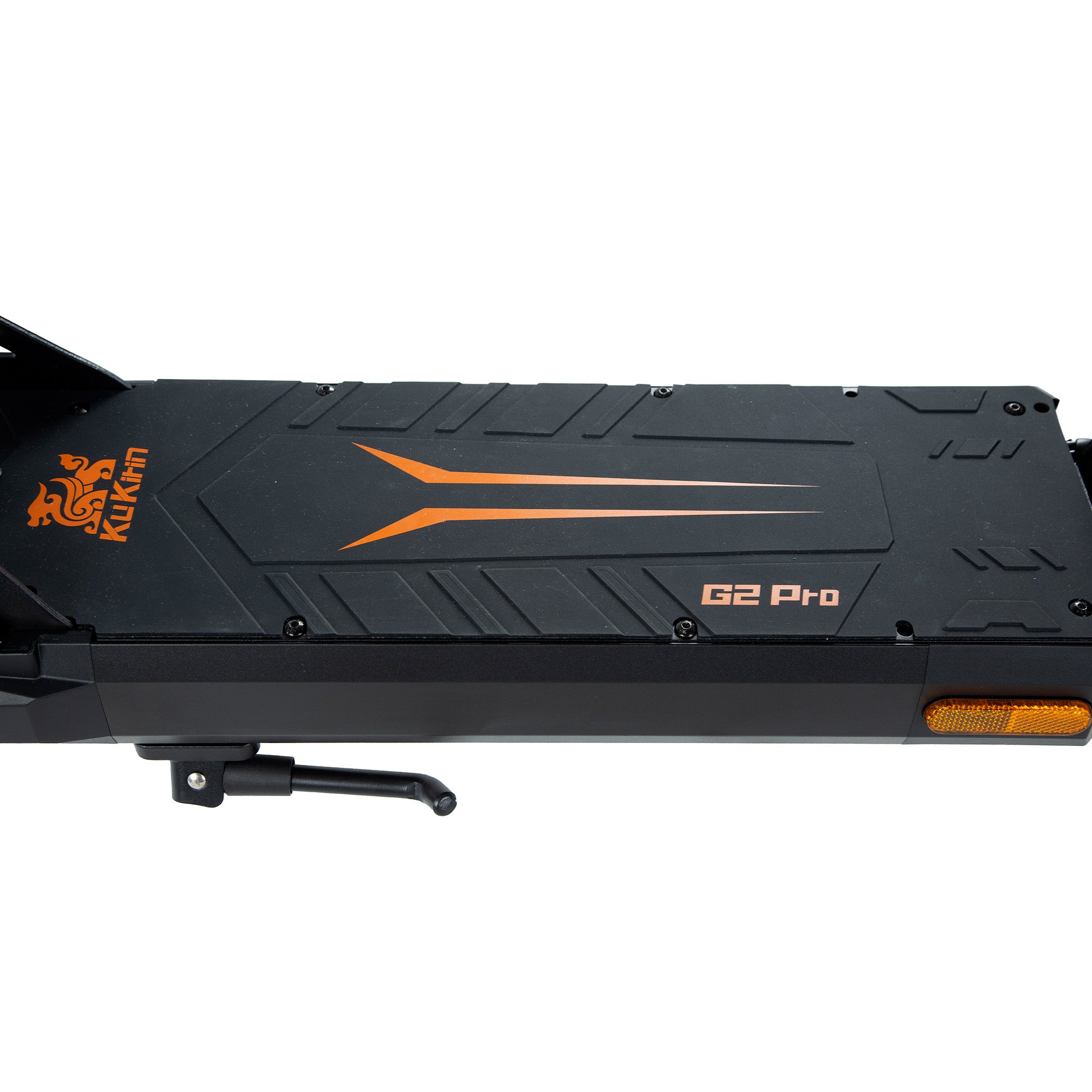

| Pedal Width | 541*182mm |
| Chassis Hegiht | 140MM |
| Waterproof Level | IP54 |
| Speed Level | 15km/h; 20km/h; 25km/h |
| Uphill | ≤19° |
| Max. Load | 120kg |
| Max. Range55 km | 65 km |
| Default Speed | 25km/h |
| Max. Speed (Unlocked Speed) | 25km/h |

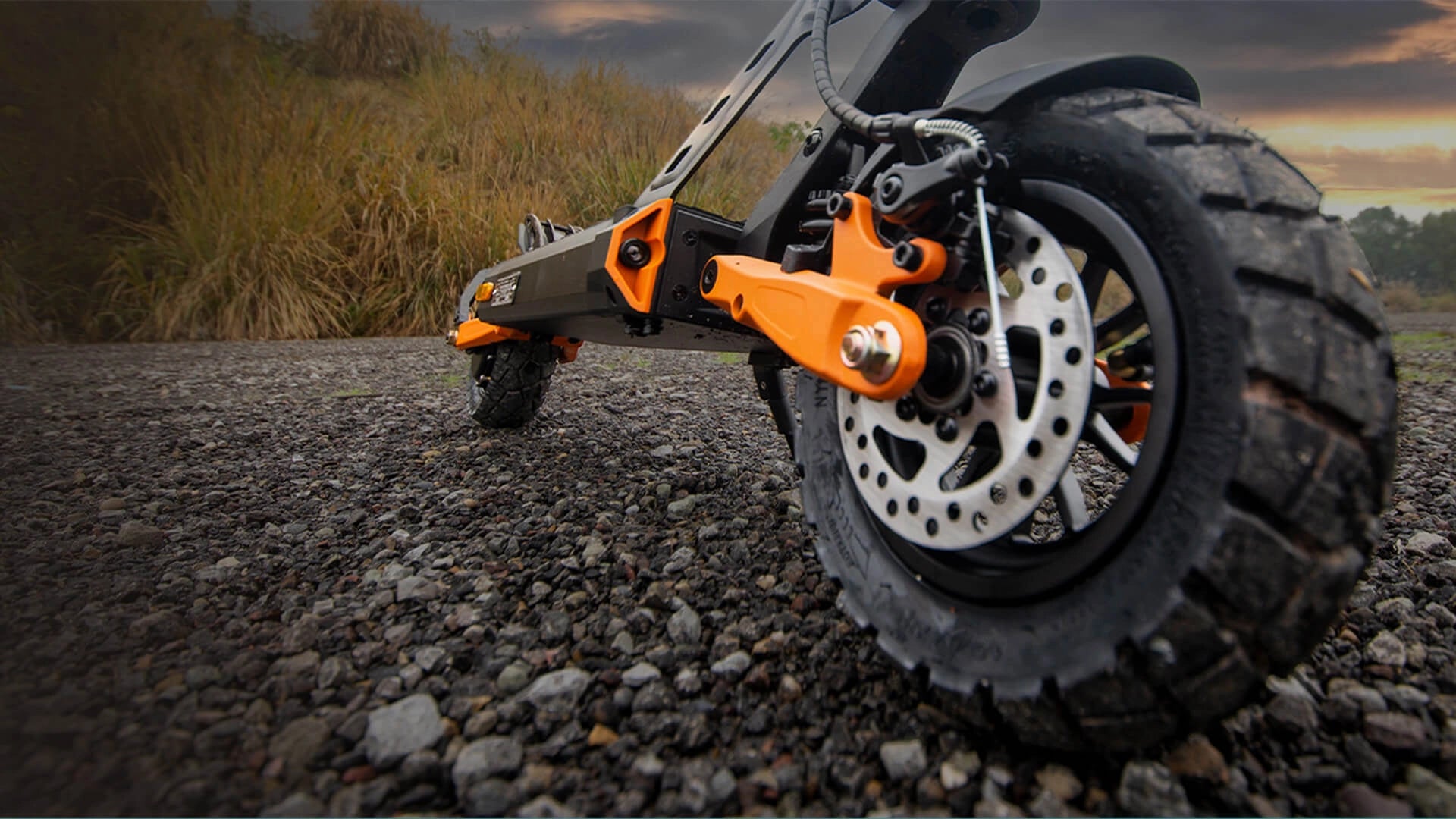

| Braking System | Front & Rear Disc Brakes |
| Braking Distance | 5-8m |
| Motor Type | Brushless Motor |
| Motor Max. RPM | 1256r/min |
| Rated Power & Voltage | 500W, 48V |
| Max. Output Torque | 23N.M |

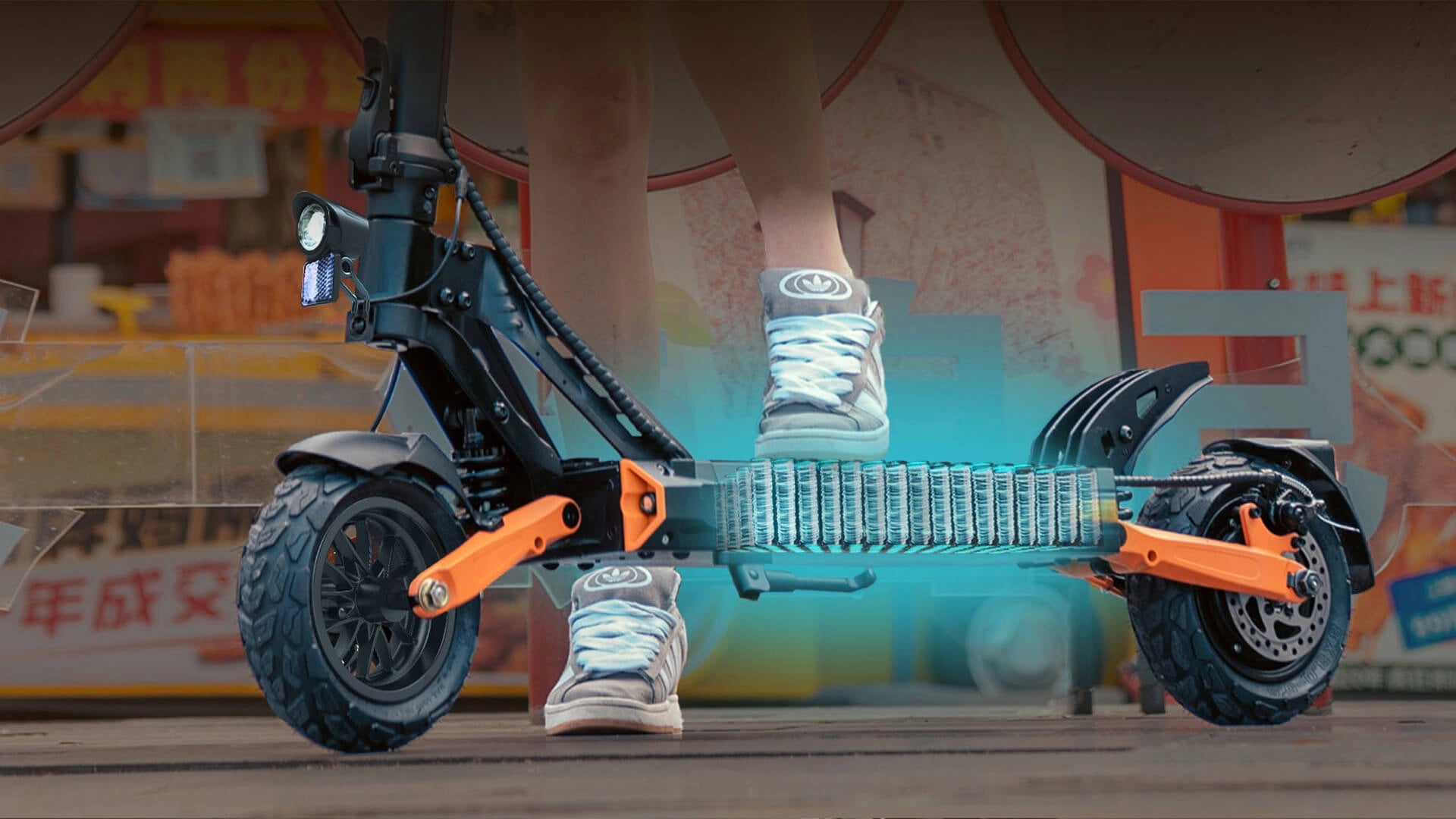

| Battery Type | 18650 Lithium Battery |
| Battery Rated Voltage | 48V |
| Battery Capacity | 15Ah |
| Charging Time | 7h~8h |
| Tire Size | 9*3" |
| Tire Type, Material | Vacuum, Rubber |
| Input Voltage & Current | 100~240V, 3A |
| Output Voltage & Current | 54.6V, 2A |

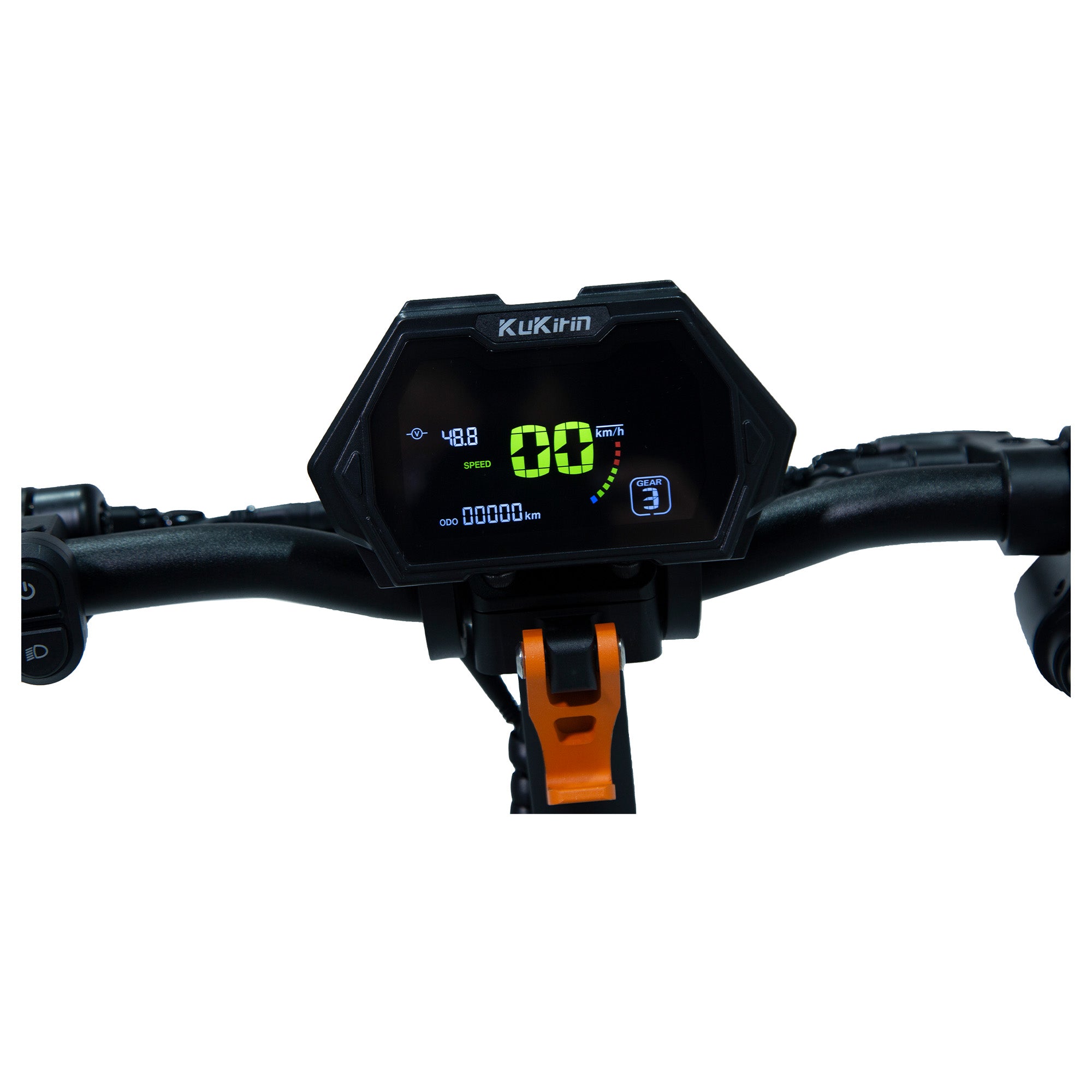

| Display Size | 134*78mm |
| Display Type | LED |

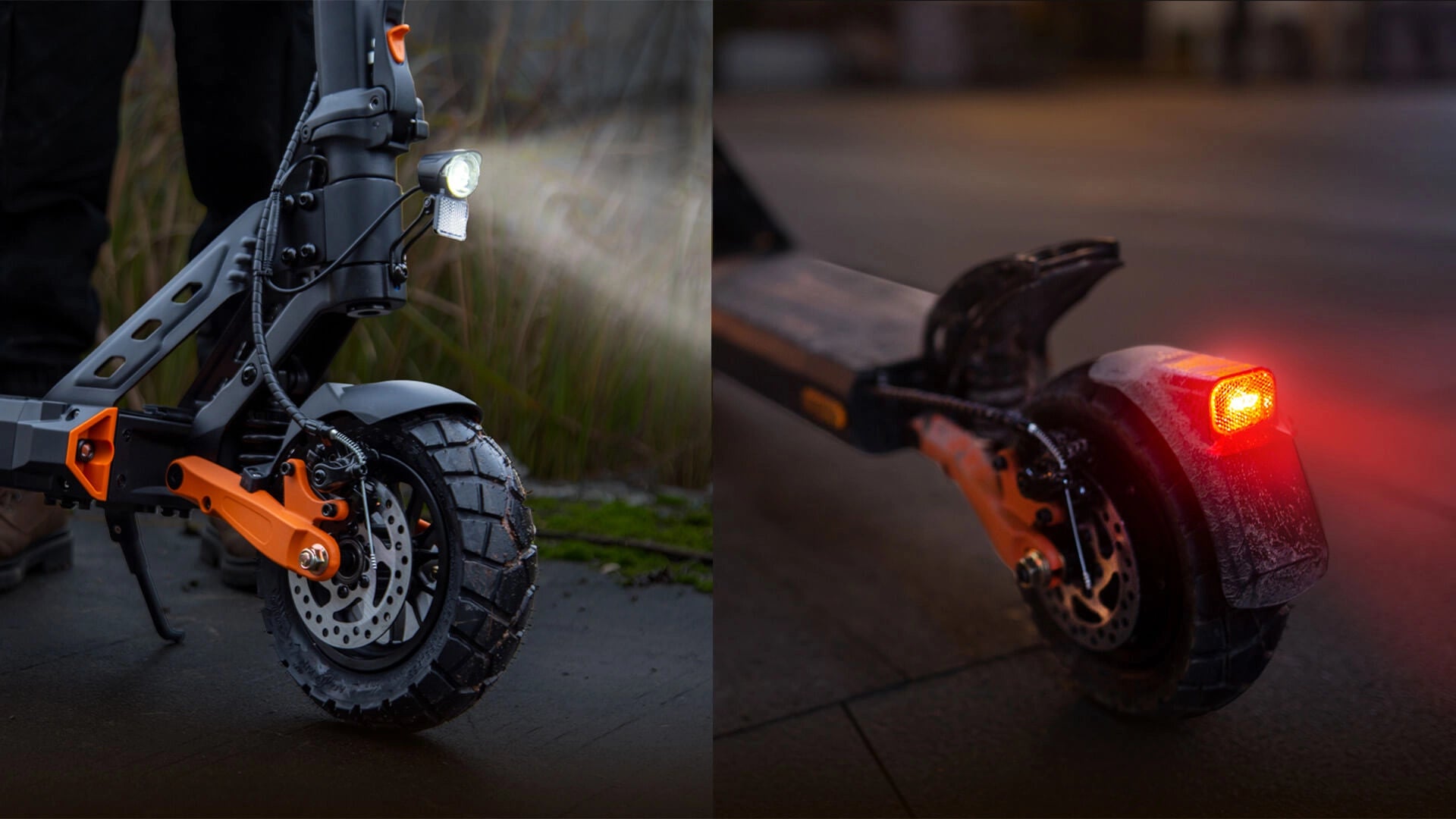

| Number of Lamp Beads | 4 |
| Irradiation Angle | 45° |
| LED Light Power | 7-8W |
500W
Motor
48V 15Ah
Battery
65km
Max Range
25km/h
Max Speed

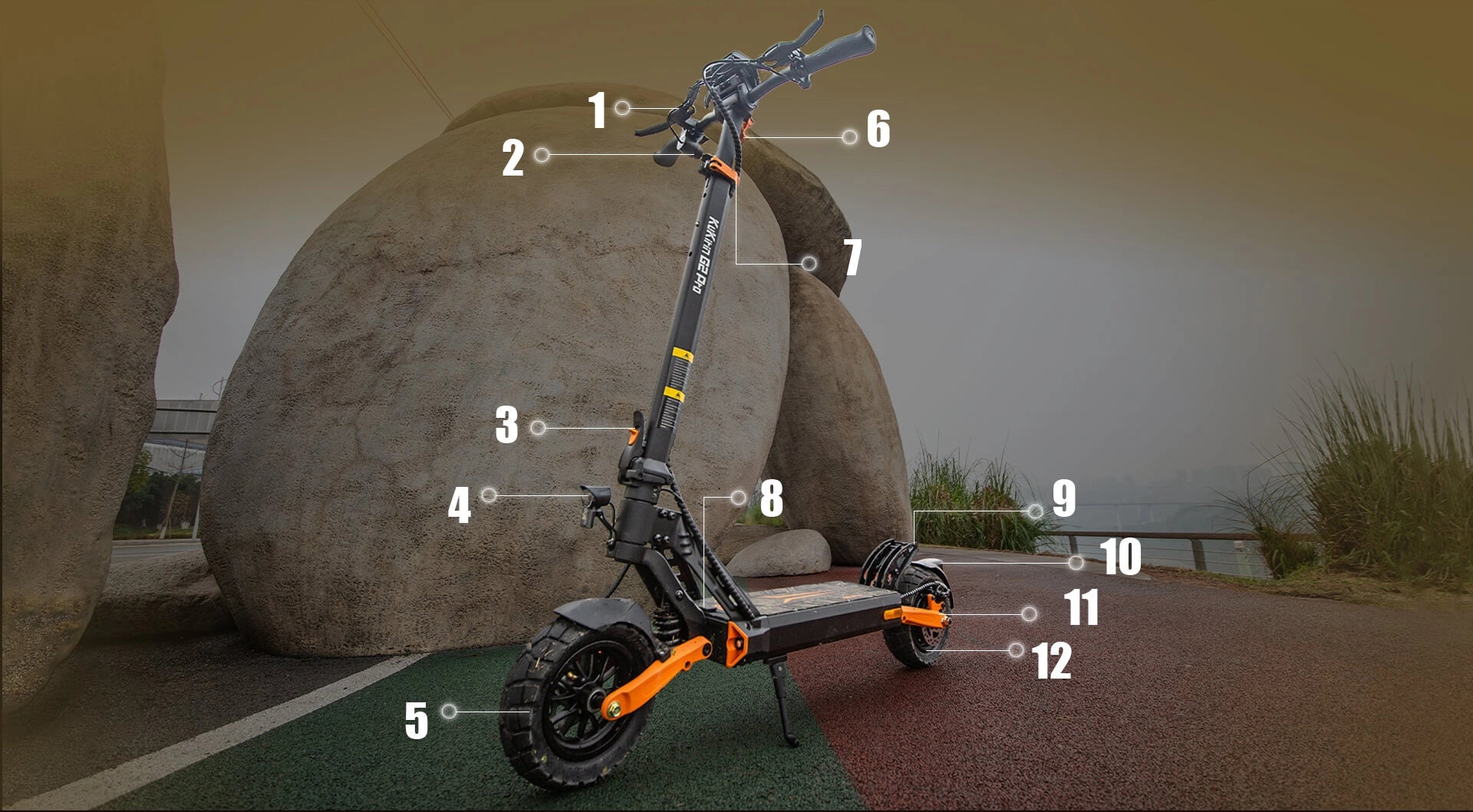

KuKirin G2 Pro DGT Parts Reference
1 | Brake |
2 | Electric door lock |

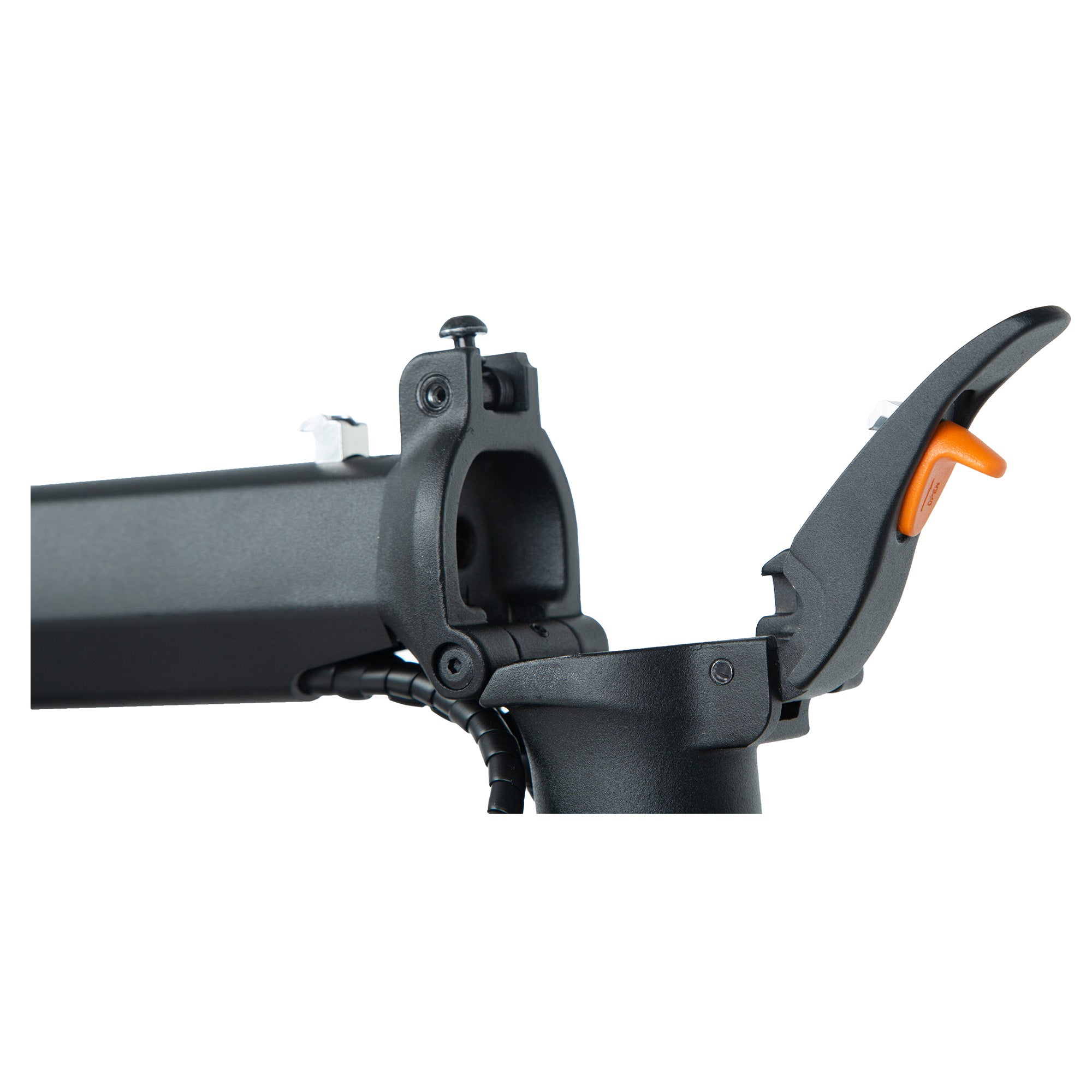

3 | Fold |
4 | Headlight |
5 | 9 inch tires |
6 | Folding Suspension Buckle |
7 | Height adjustment |

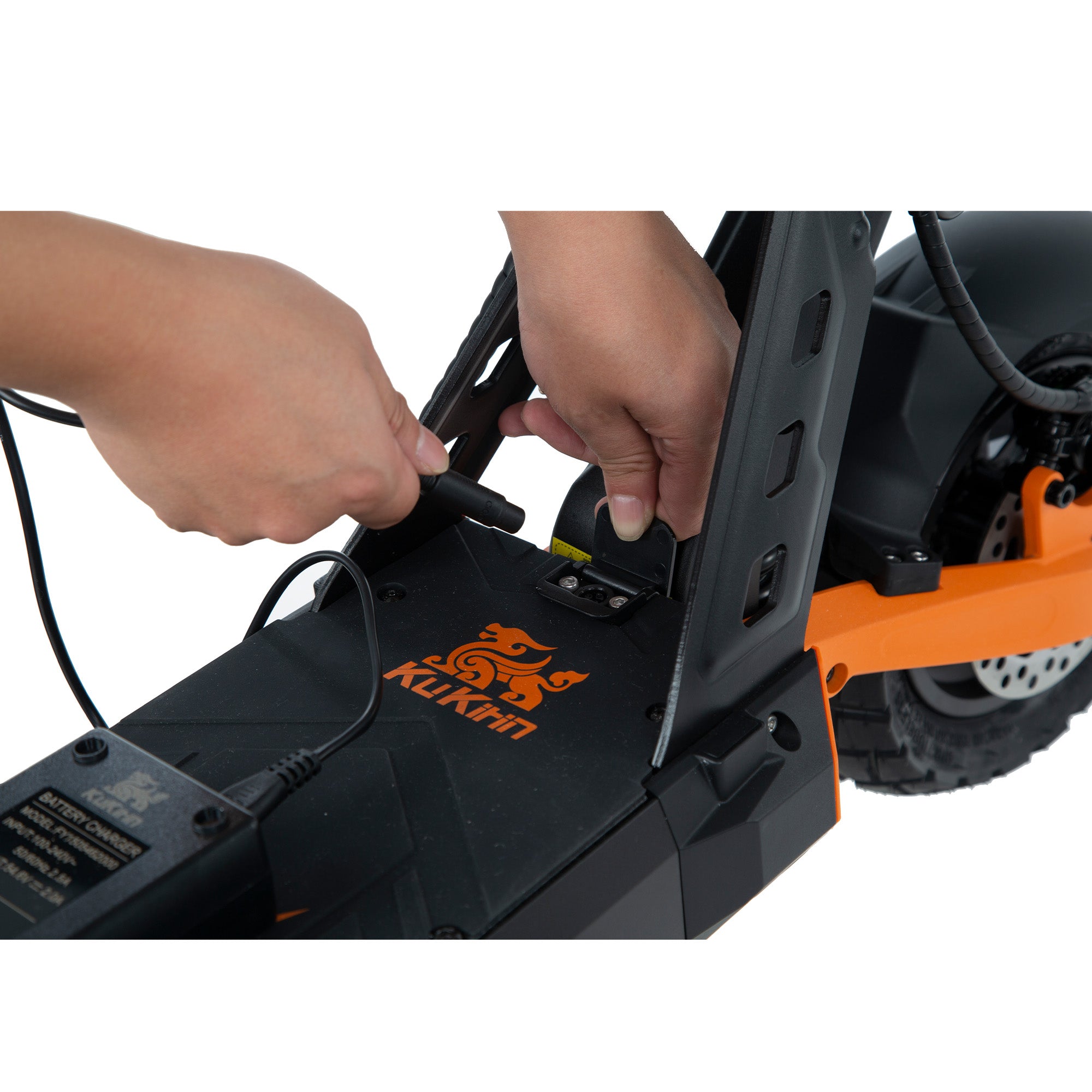

8 | Charging port |
9 | Rear pedal |
10 | Tailgate |

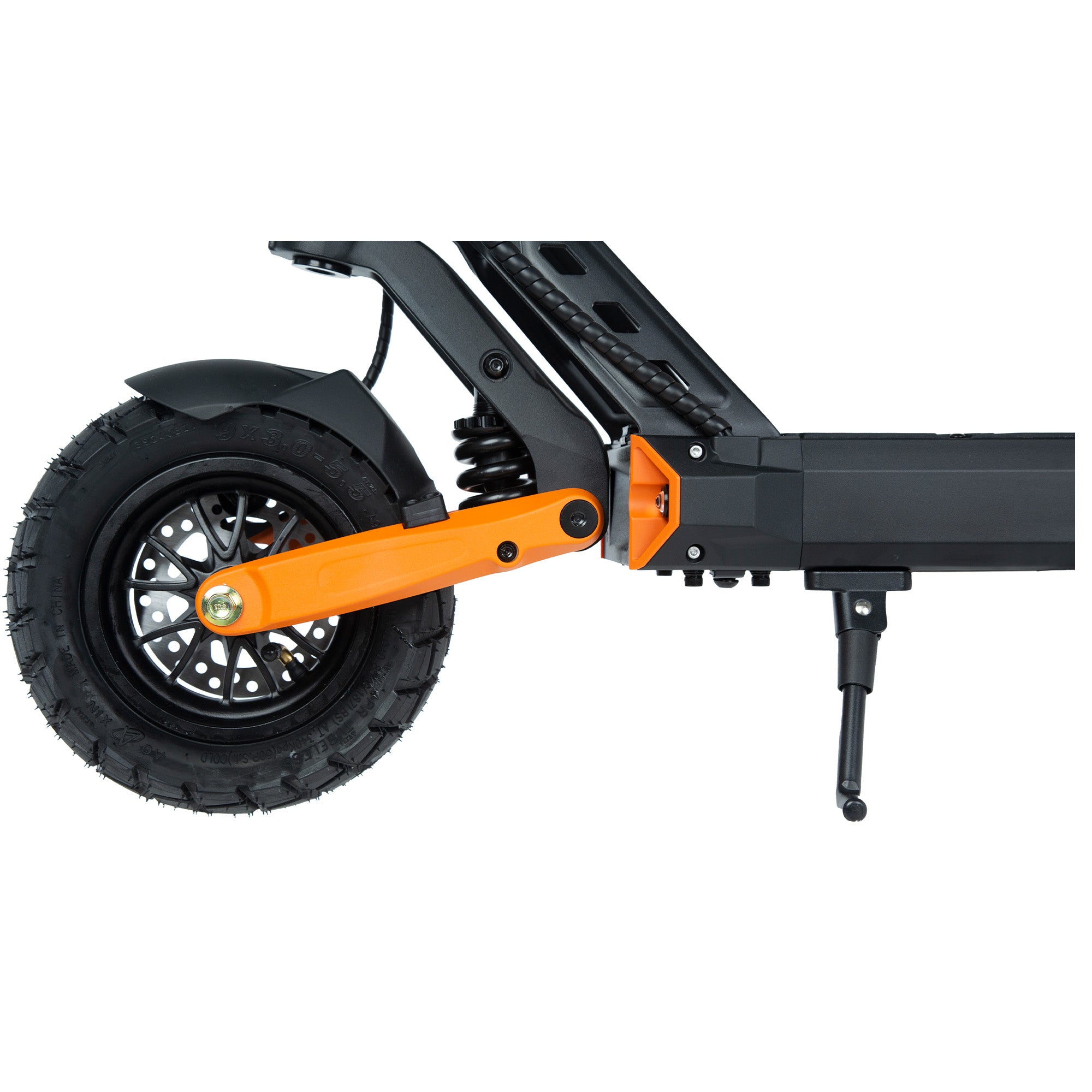

11 | Shock arm |
12 | Motor |

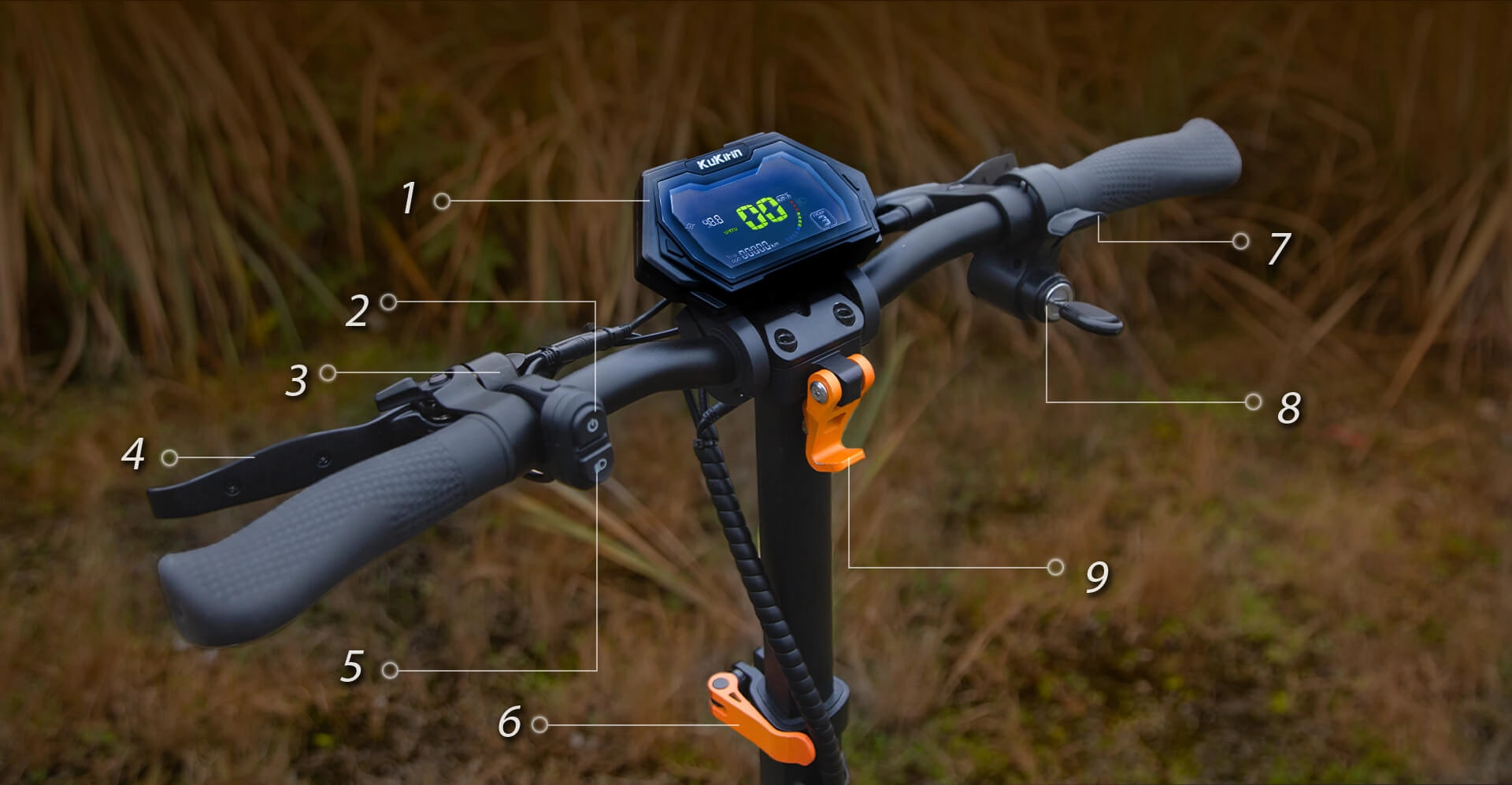

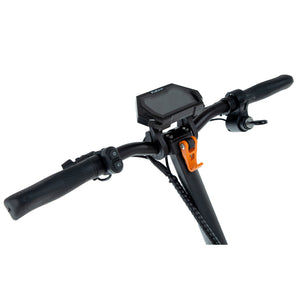

KuKirin G2 Pro DGT Parts Reference
1 | Display |
2 | Power button |
3 | Bell |
4 | Brake |
5 | Light switch |
6 | Height adjustment |
7 | Accelerator |
8 | Key unlock hole |
9 | Folding hook |
