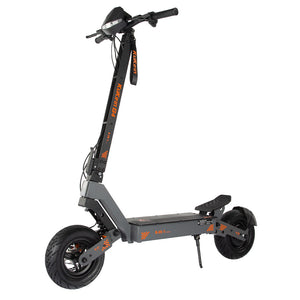

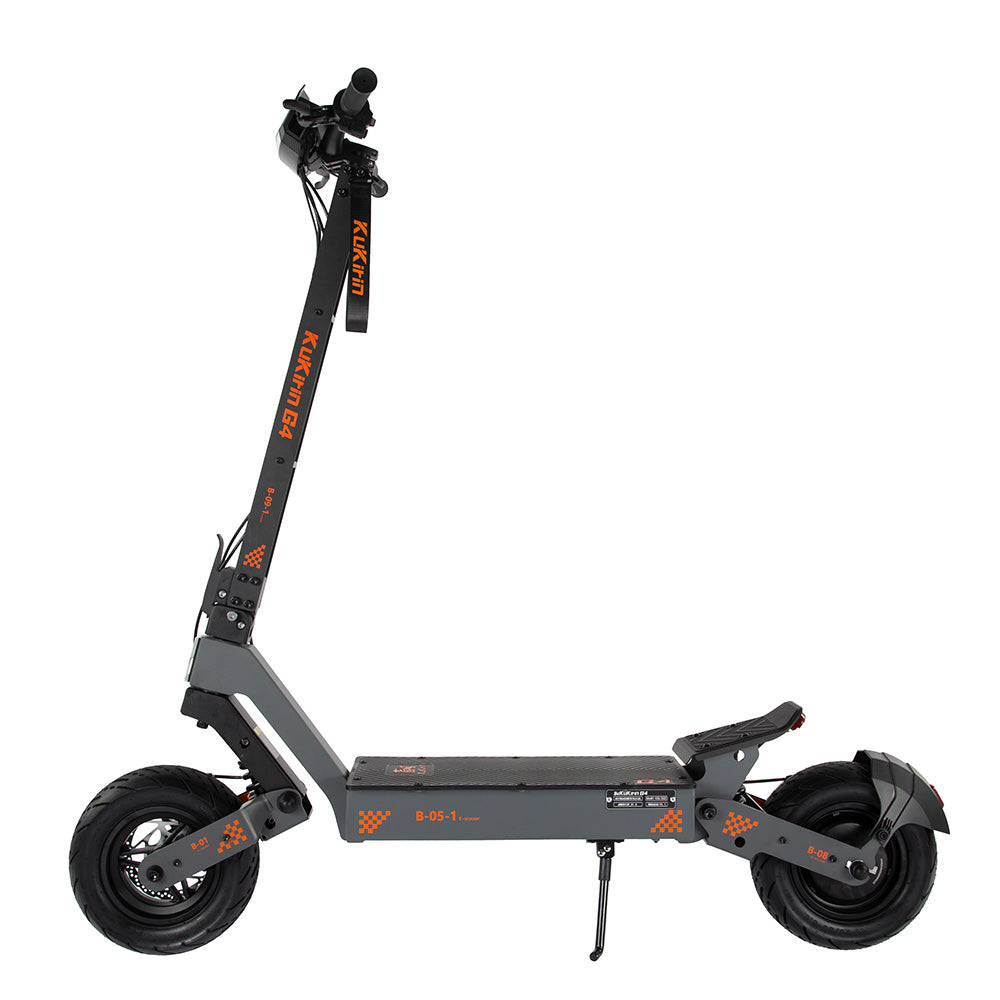

Kukirin G4
Kukirin G4
Kukirin G4
60V 20Ah Battery
2000W Brushless Motor
75 Kilometers Range
11'' Tubeless Wheels

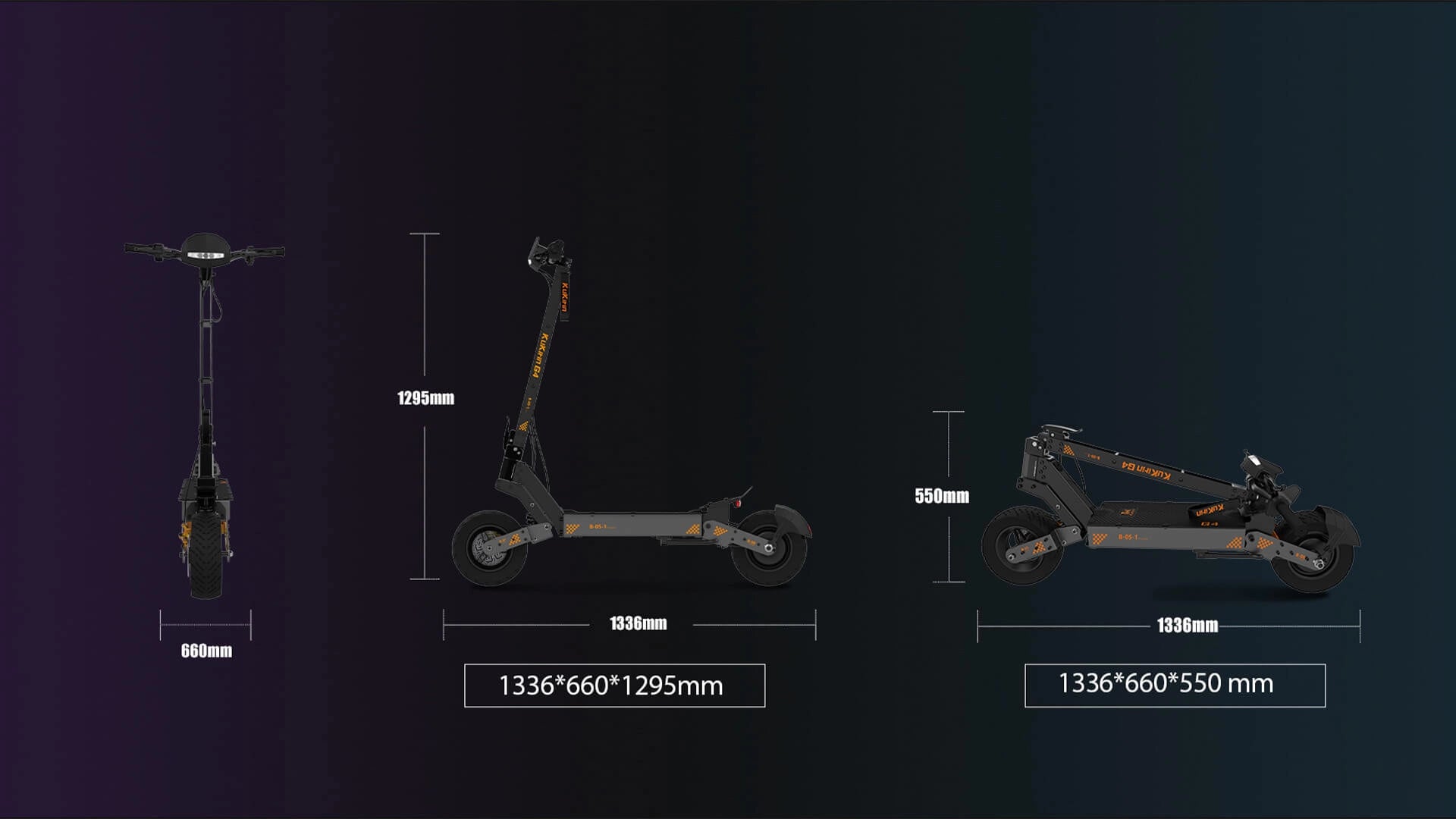

| Unfolded Size | 1336*1295*660MM |

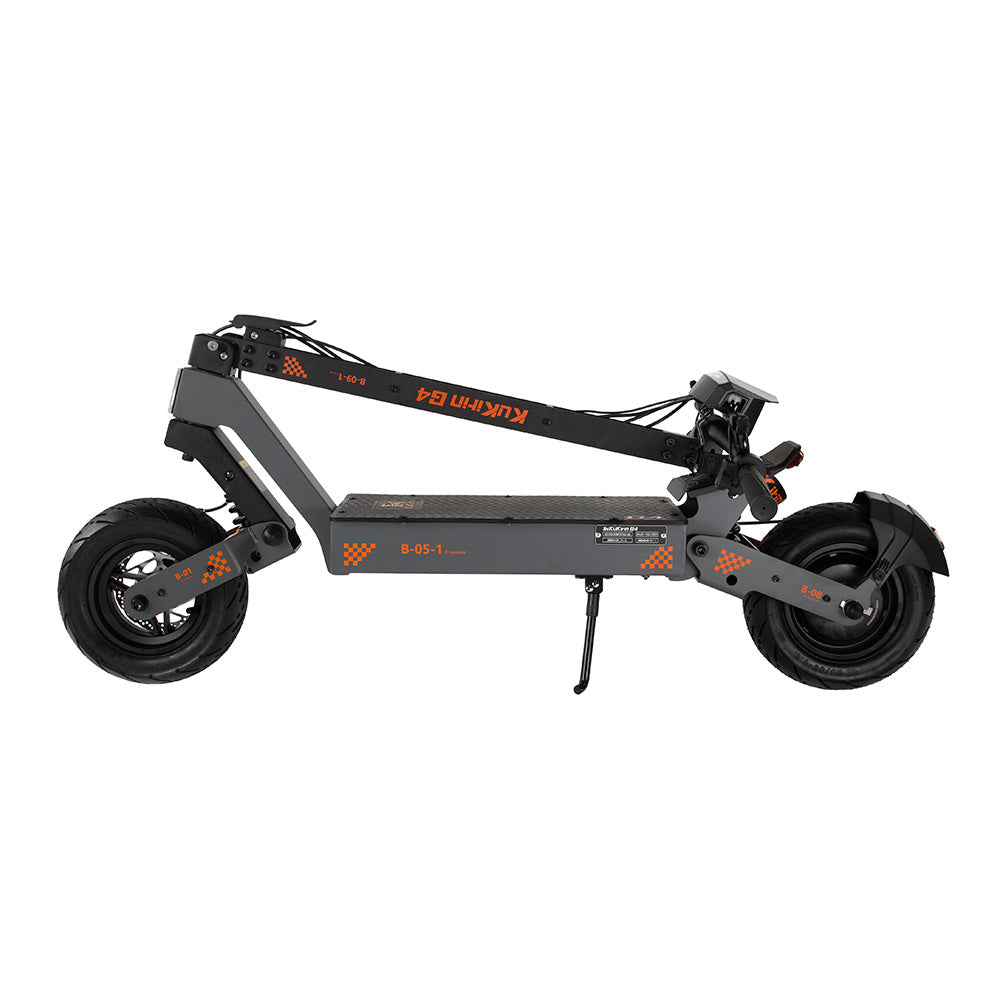

| Folded Size | 1336*550*660MM |
| Weight | 37KG |
| Frame material | Aluminum alloy |
| Chassis Hegiht | 185mm |
| Waterproof Level | IPX4 |
| Speed Level | 20km/h; 40km/h; 70km/h |
| Uphill | ≤20° |
| Max. Load | 120kg |
| Max. Range | 75km |
| Default Speed | 25km/h |
| Max. Speed (Unlocked Speed) | 70km/h |
| Braking Distance | ≤4m |
| Motor Type | Brushless Motor |
| Motor Max. RPM | 1350±30rpm |
| Rated Power & Voltage | 2000W, 60V |
| Max. Output Torque | ≥38N.m |
| Battery Type | 18650 Lithium Battery |
| Battery Rated Voltage | 60V |
| Battery Capacity | 20 AH |
| Charging Time | 10h~12h |
| Tire Size | 11" |
| Type | Pneumatic off-road tires |
| Input Voltage & Current | AC100-240V , 2A |
| Output Voltage & Current | 67.2V , 2A |
2000W
Motor
60V 20Ah
Battery
75km
Max Range
70km/h
Max Speed

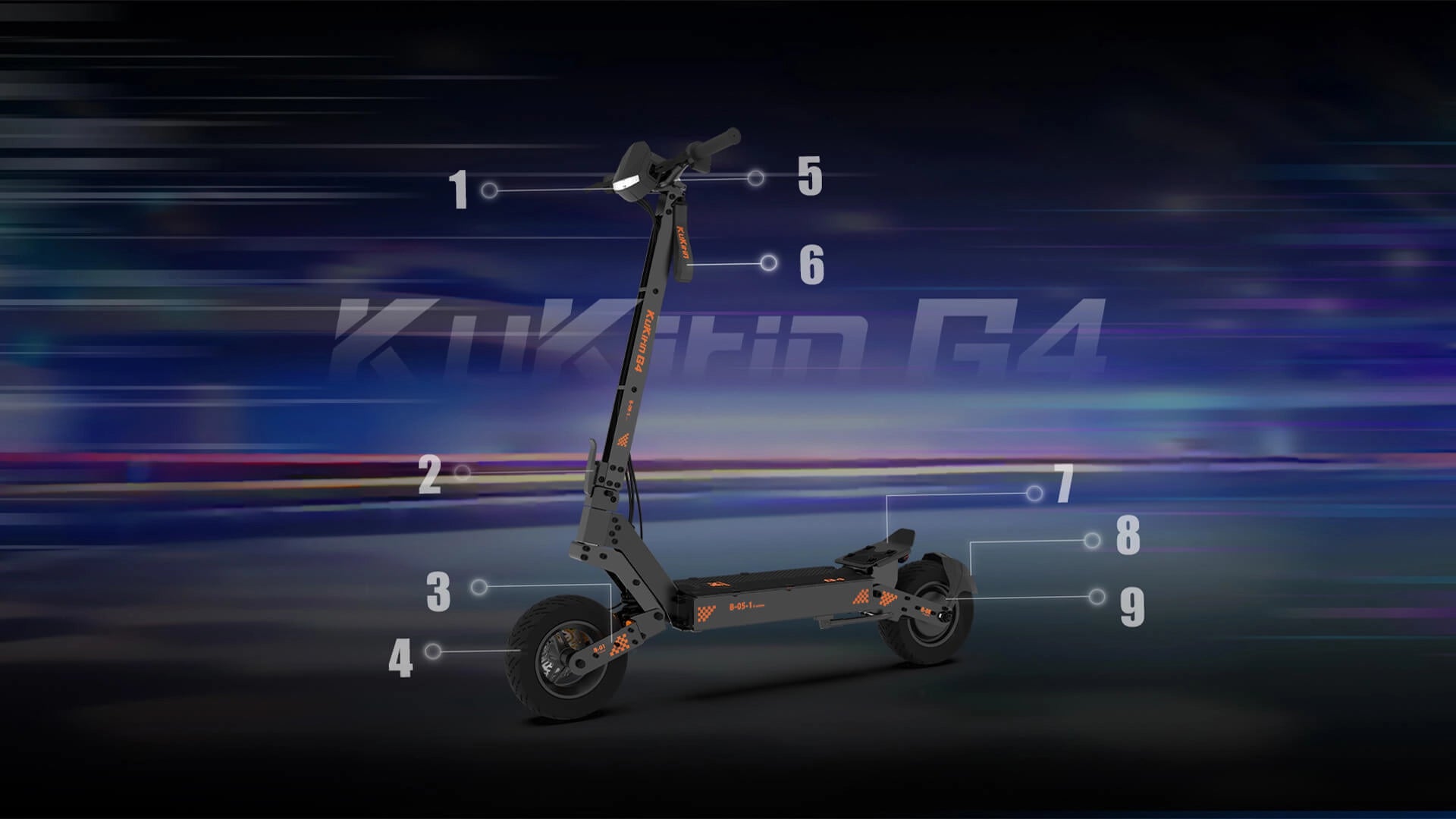

KuKirin G4 Parts Reference
1 | Headlight |

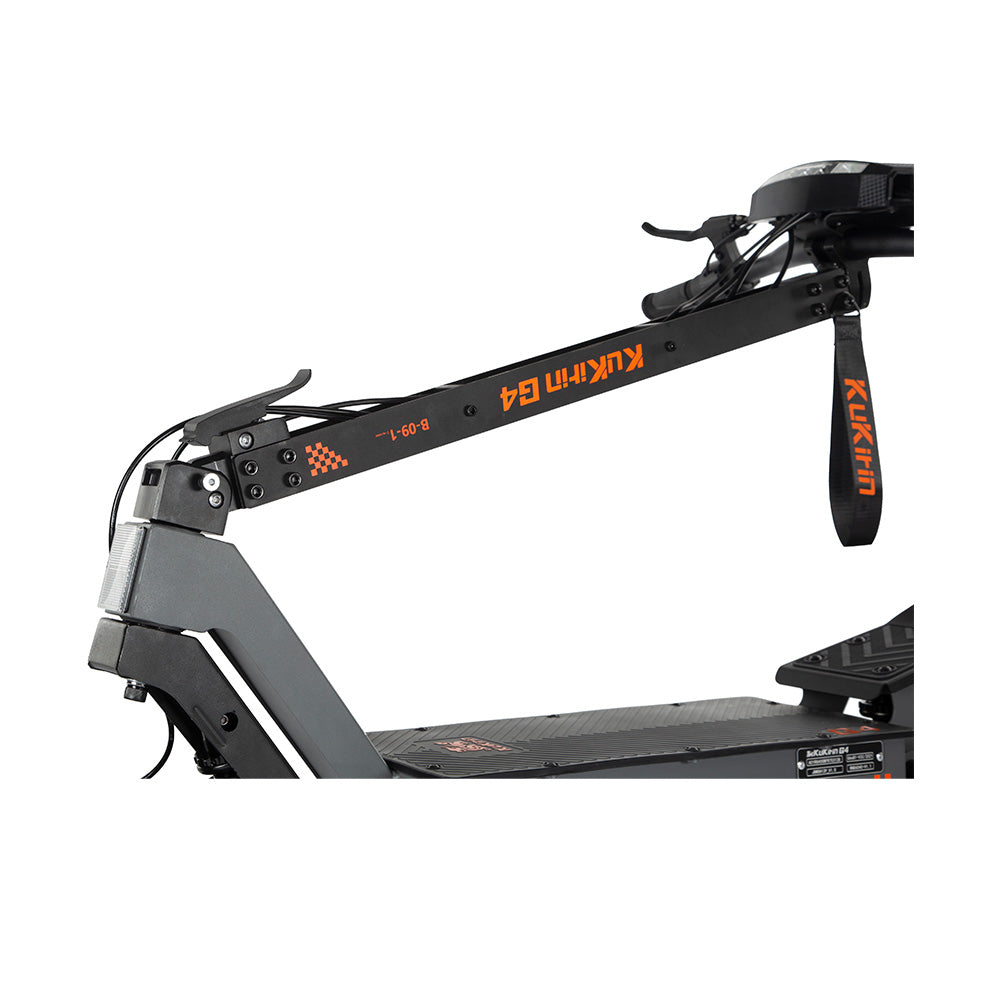

2 | Fold buckle |

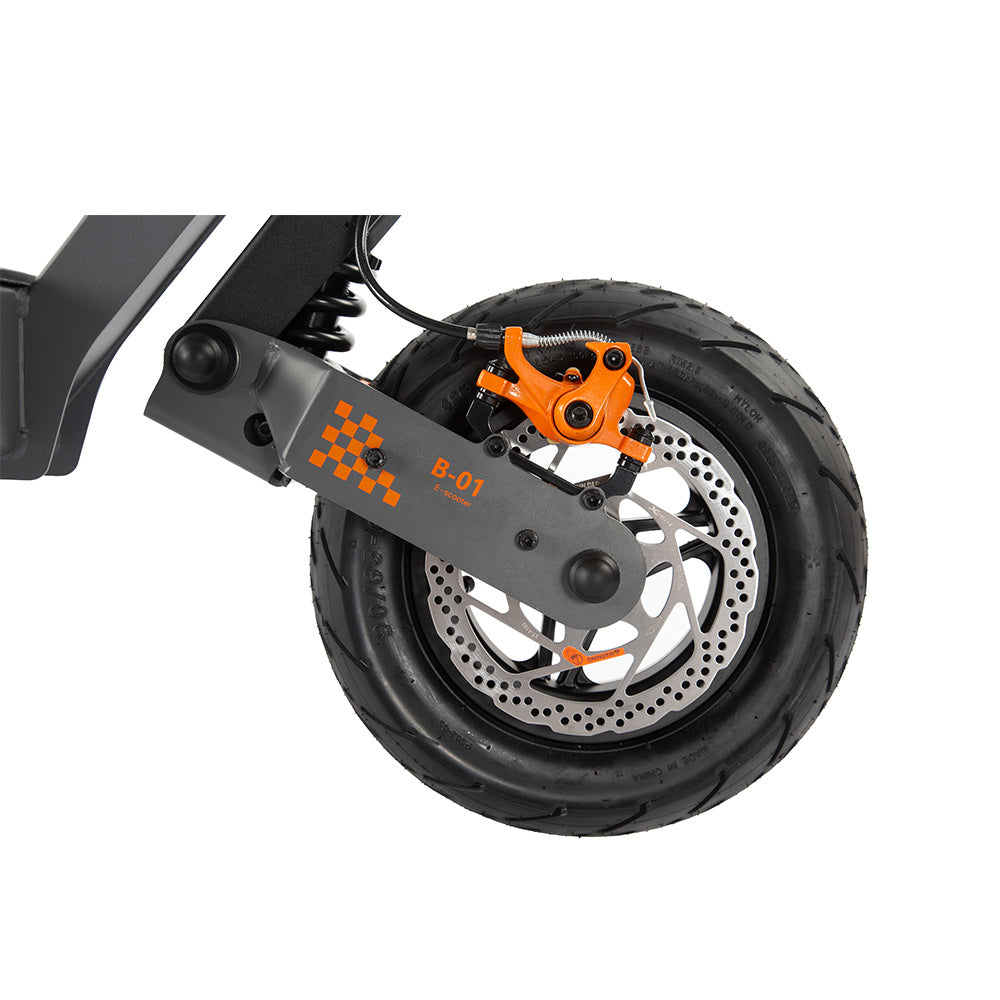

3 | Front shock absorber |
4 | 90mm super wide tire |
5 | Key switch |
6 | Folding Suspension |

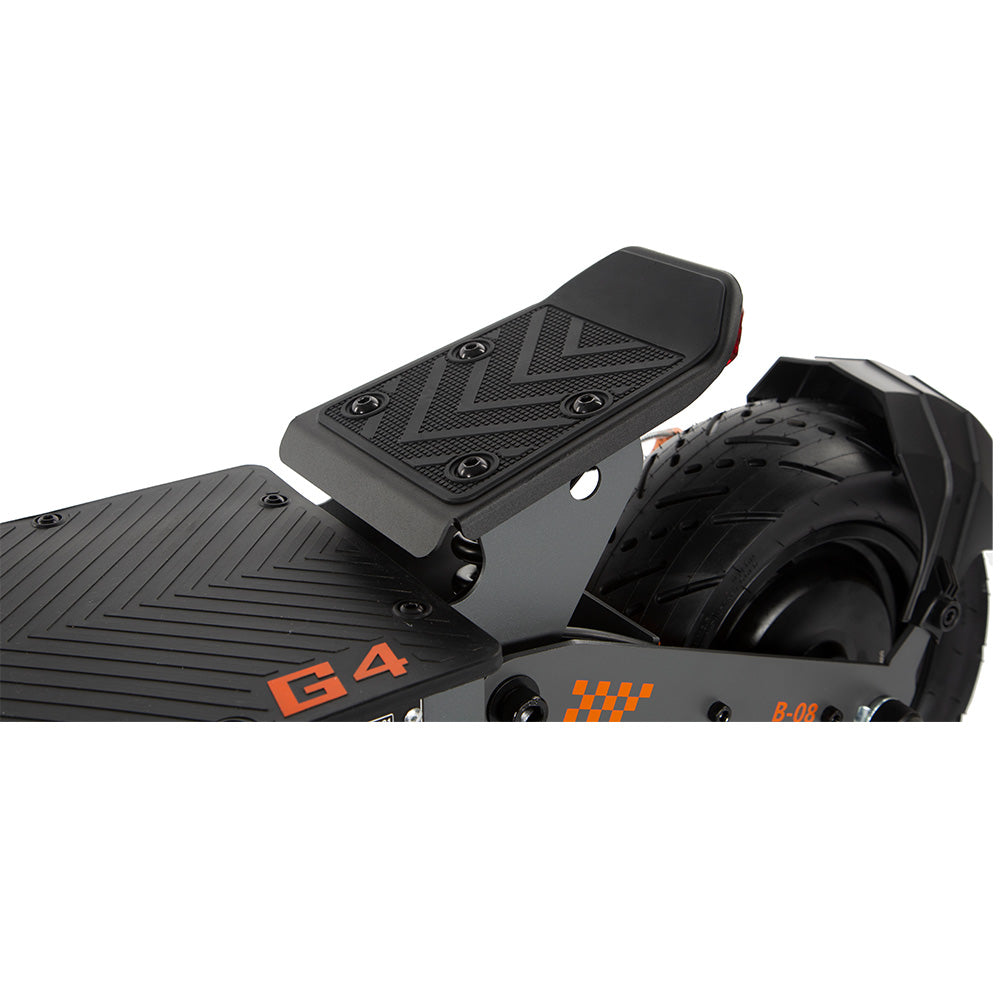

7 | Rear pedal |
8 | Rear fender |
9 | 2000W motor |

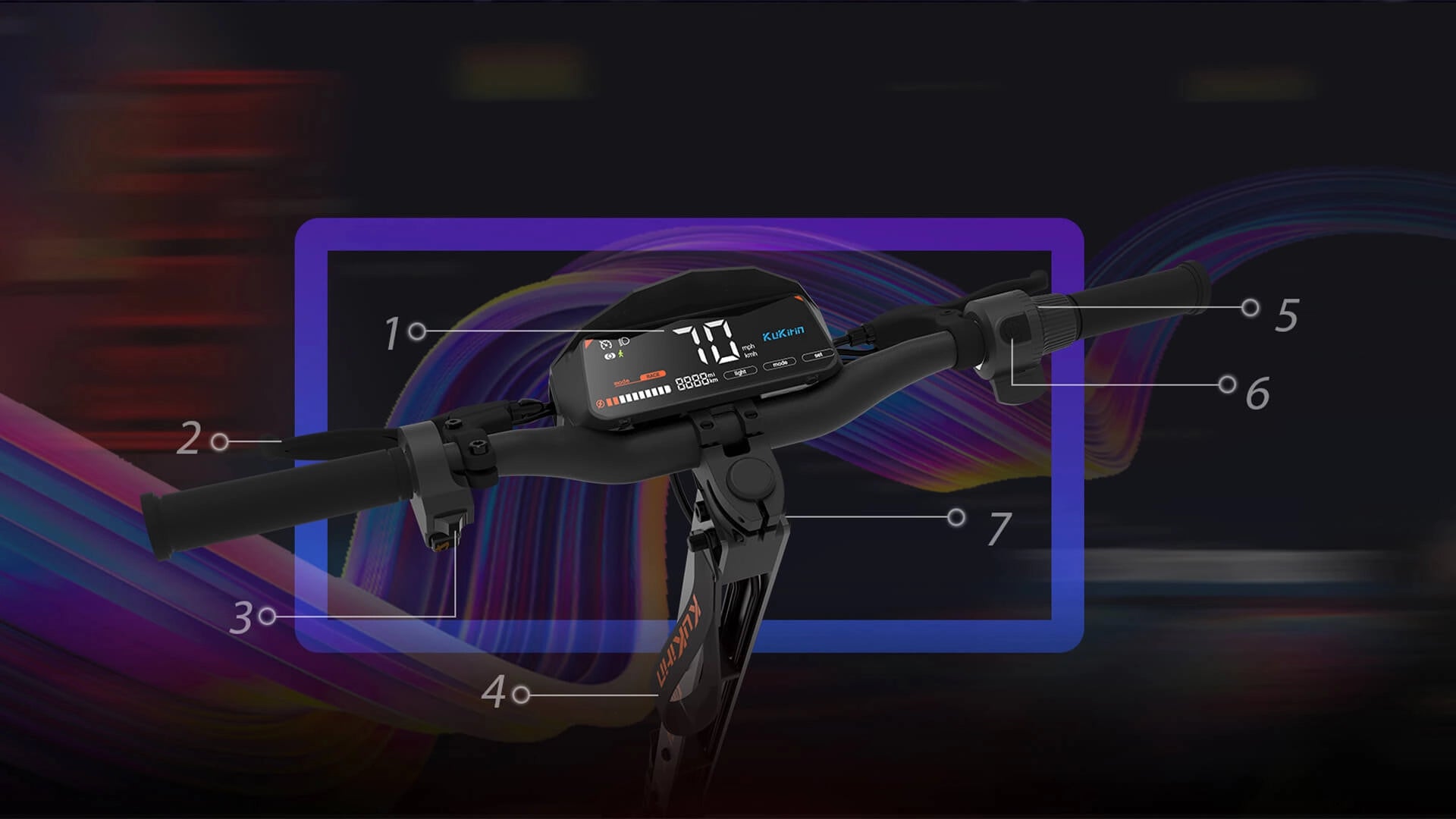

KuKirin G4 Parts Reference

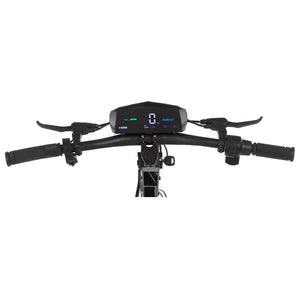

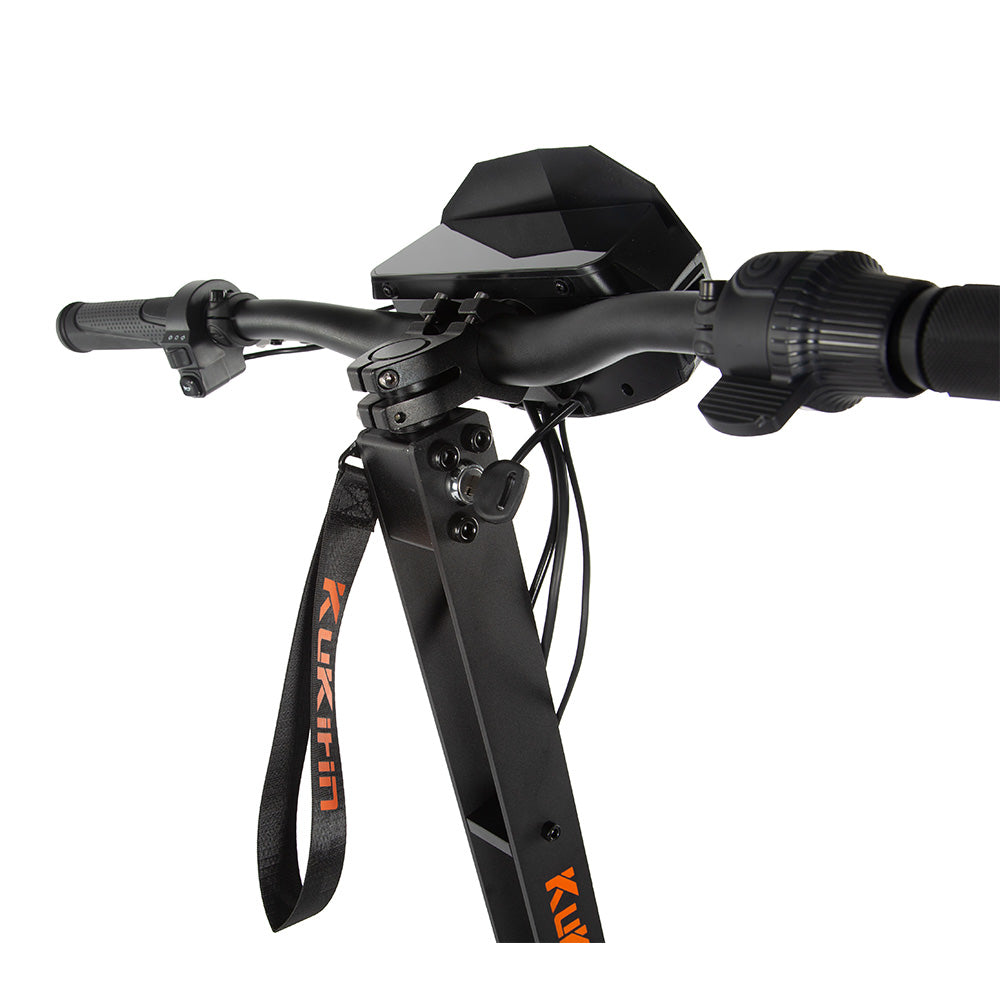

1 | touch screen |
2 | brake |
3 | turn signal, horn |
4 | light switch |
5 | accelerator |
6 | switch button |
7 | Electric door lock |
